MPO (Multi-fiber Push On) connectors are high-density, multi-fiber optical connectors designed for fast, reliable, and compact fiber optic connections in data centers and high-speed networks.
Détails sur le produit:
| Lieu d'origine: | Shenzhen, Chine |
| Nom de marque: | OEM/Takfly |
| Certification: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | Connecteur MTP DF-MPO |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Prix: | Can be negotiated |
| Détails d'emballage: | avec la boîte de carton |
| Délai de livraison: | 3-15 jours ouvrables selon la quantité et les exigences |
| Conditions de paiement: | T/T, Western Union, Paypal |
| Capacité d'approvisionnement: | 3000 pièces/semaine |
|
Détail Infomation |
|||
| Connecteur de fibre: | MPO, connecteur MTP | Noyaux de fibres: | 4, 8, 12, 24 fibres |
|---|---|---|---|
| Mode fibre: | SM, MM | Type de polissage: | UPC, APC |
| Genre: | Homme, Femme | Diamètre du câble: | 250um, 0,9 mm, 2,0 mm, 3,0 mm ou personnalisé |
| Matériau de la veste: | PVC, LSZH, OFNR, OFNP, etc. | Longueur du câble: | 0,5 M, 1 M, 3 M, 5 M ou personnalisé |
| Polarité du câble: | Type A, Type B, Type C ou personnalisé | Couleur du câble: | Jaune, Aqua, Violet, Lime ou personnalisé |
| Mettre en évidence: | MPO connectors high-density fiber optic,MPO connectors compact data center,MPO multi-fiber push on |
||
Description de produit
MPO Fiber Optic Connectors
MPO (Multi-fiber Push On) connectors are high-density, multi-fiber optical connectors designed for fast, reliable, and compact fiber optic connections in data centers and high-speed networks.
Product Overview
Professional-grade fiber optic patch cables designed for high-density connectivity applications. Available in various configurations including 8F, 12F, 16F, and 24F fiber counts with MPO/MTP connectors in male/female variants, compatible with OM3, OM4, and OM5 multimode fiber specifications.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||

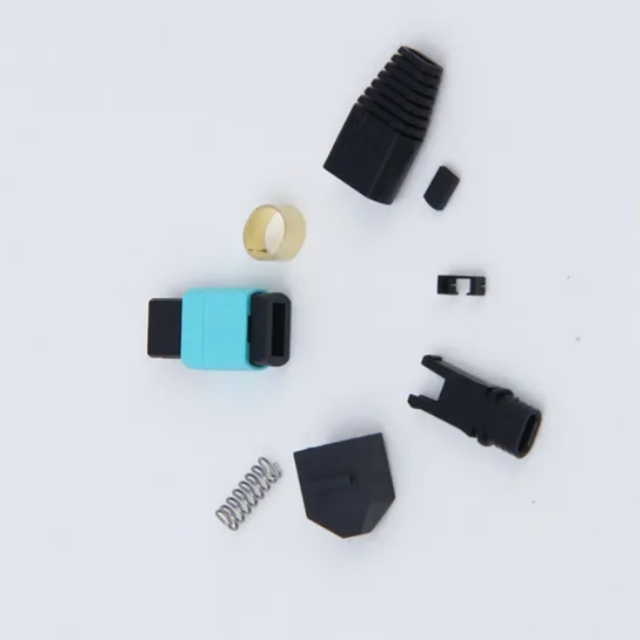

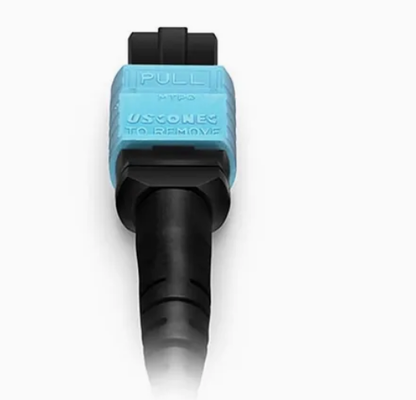

Product Images
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
