GJYX(F)CH-1.2 Optical Cable FRP/KFRP/Steel Wire 1-4F
Détails sur le produit:
| Lieu d'origine: | Chine, Shenzhen |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | TK-PC-48F-SC-OS2-50M |
Conditions de paiement et expédition:
| Quantité de commande min: | Négociable |
|---|---|
| Prix: | negotiable denpend on QTY |
| Détails d'emballage: | Boite Blister+Carton |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement doit fournir les informations suivantes: |
| Capacité d'approvisionnement: | 1000pcs / jour |
|
Détail Infomation |
|||
| Nom du produit: | Câble optique GJYX(F)CH-1.2 | Nombre de fibres: | GJYXCH-1 ~ 4 ; GJYXFCH-1 ~ 4 |
|---|---|---|---|
| Diamètre de la fibre optique (± 1 µm): | 125 μm | Diamètre de revêtement de fibre optique (± 5 µm): | 250 μm |
| Renforcement du cœur: | Les produits de la catégorie 1 ne sont pas soumis à des exigences de conformité. | Diamètre de l'élément de force (mm): | 0,4 mm*2+1,2 mm |
| Supplémentaire: | Lszh | Couleur: | Noir |
| Diamètre extérieur (millimètres): | 2,0*5,2 2,0 | Poids de câble (kg/km): | 24 ; 18 |
| Température de fonctionnement: | -20 ℃ ~ 70 ℃ | Marque de fibre: | Corning, YOFC, OFS et Draka |
| Mettre en évidence: | FRP reinforced fiber optic cable,KFRP armored optical cable,steel wire reinforced 4F cable |
||
Description de produit
GJYX(F)CH-1.2 Optical Cable FRP/KFRP/Steel Wire 1-4F
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. Two parallel strength members are placed at the two sides, then the cable is completed with black LSZH sheath.
Product Applications
- Adopted to outdoor distribution
- Suitable for aerial, pipeline laying method
- As FTTH cable, for indoor horizontal and vertical cabling
- Meet various requirements of market and clients
Product Features
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Simple structure, light weight and high practicability
- Low smoke, zero halogen and flame retardant sheath
- Meet various requirements of market and clients
Optical Parameter and Properties

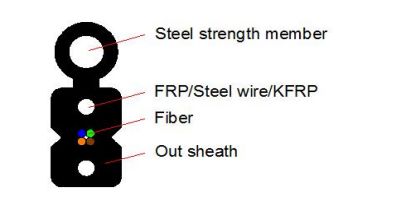

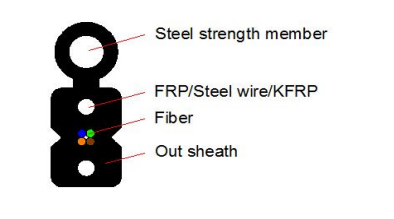

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as: OPTICAL FIBER CABLE GJYXFCH 2.0X5.2 LSZH MM/YY 00000M
