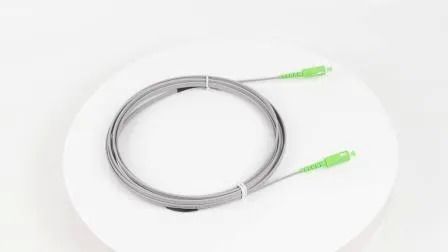

SC/LC/ST/FC Fiber Optical Patch Cord with 1000N Tensile Strength and -40~75 Operating Temperature for Reliable Connectivity
Résumé du produit
SC/LC/ST/FC SM/MM Simplex/Duplex Fiber Optical Patch Cord A high-performance fiber optic patch cord designed for reliable signal routing between devices. The MPO connector enables high-density interconnection using MT Ferrule with Fiber Ribbon technology. Key Features Low insertion loss and high ...
Product Custom Attributes
Structure de connexion:
SC-SC
Forme du matériau:
Fil rond
Pression latérale autorisée:
100 (n / 100 mm) <1000 (n / 100 mm)
Autorisation de résistance à la traction:
1000N <10000N
Cœur:
Double noyau
Matériau de gaine:
PVC ou LSZH
Noyaux de fibres:
8,12,20,24
Type de fibre:
OS1, OS2, OM1, OM2, OM3, OM4
Couleur de veste de câble:
Jaune, bleu, vert, aqua, rouge, magenta, beige
Perte:
≤0,3 dB (typique)
Pertes de rendement:
≥45 dB
Longueur d'onde de fonctionnement:
1310, 1510 nm
Échangeabilité:
≤0,2 dB
Température de fonctionnement:
-40 ~ 75 ºC
Diamètre du câble:
φ3.0, φ2.0, φ0,9 mm
Mettre en évidence:
1000N Tensile Strength Fiber Optical Patch Cord
,-40~75 Operating Temperature Fiber Optic Patch Cable
,SC/LC/ST/FC Optical Patch Cord
Propriétés de base
Certification:
RoHS, CE, ISO9001, VDE, CCC
Propriétés commerciales
Quantité de commande min:
10
Prix:
0.6
Description de produit
SC/LC/ST/FC SM/MM Simplex/Duplex Fiber Optical Patch Cord
A high-performance fiber optic patch cord designed for reliable signal routing between devices. The MPO connector enables high-density interconnection using MT Ferrule with Fiber Ribbon technology.
Key Features
- Low insertion loss and high return loss for optimal signal integrity
- MT based multi-fiber connector supporting up to 12 fibers
- Exceptional reliability and stability in operation
- Excellent repeatability and exchangeability
Applications
- Testing equipment and measurement systems
- FTTX and LAN network infrastructure
- Optical fiber CATV distribution
- Optical communication systems
- Telecommunication networks
Technical Specifications
| Parameter | Unit | FC, SC, LC/ Armoured | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 (PC), ≤0.2 (UPC), ≤0.3 (APC) | ≤0.2 (PC), ≤0.3 (UPC) | ≤0.2 (PC), ≤0.3 (APC) | ≤0.3 |
| Return loss | dB | ≥45 (PC), ≥50 (UPC), ≥60 (APC) | ≥30 (PC), ≥45 (UPC) | ≥50 (PC), ≥55 (UPC), ≥75 (APC) | ≥35 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ºC | -40~75 | |||
| Storage temperature | ºC | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||

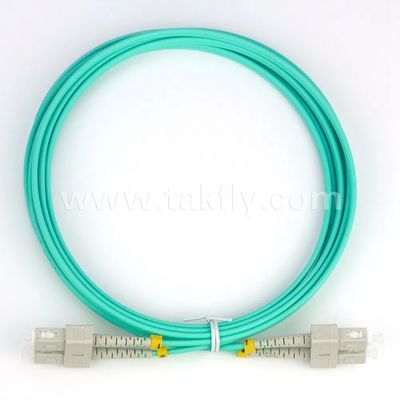

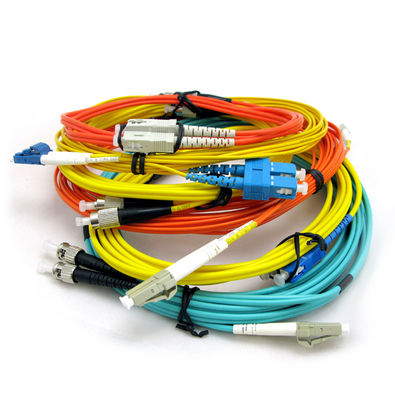

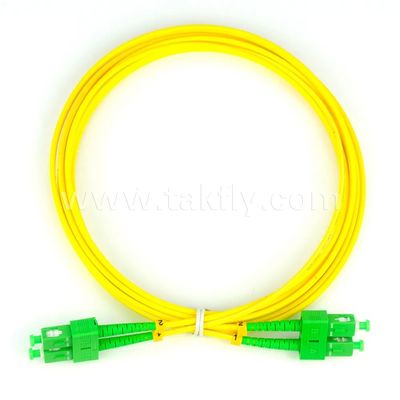

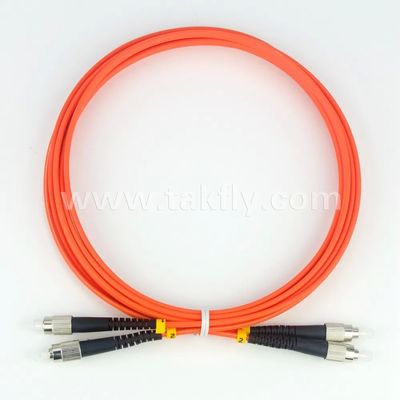

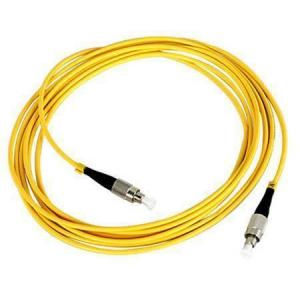

Product Images
