FC to FC Multimode 50/125 Duplex Fiber Optic Patch Cord for 10Gbps Networks with Low Insertion Loss and High Return Loss
Résumé du produit
FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord The FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord is designed for high-performance signal routing between devices. This OM3 50/125 multimode fiber optic cable complies with ISO/IEC 11801 standards, making it ideal for 10Gbps ...
Product Custom Attributes
Structure de connexion:
Le numéro de la banque
Forme du matériau:
Fil rond
Pression latérale autorisée:
> 1000 (n / 100 mm)
Autorisation de résistance à la traction:
> 10000N
Cœur:
Noyau unique
Matériau de gaine:
PVC ou LSZH
Perte:
Moins que 0.3dB
Pertes de rendement:
Plus de 45 dB
Longueur d'onde de fonctionnement:
1310 1510nm
Température de fonctionnement:
-40~75
Température de stockage:
-45 à 85
Type de fibre:
OS1, OS2, OM1, OM2, OM3, OM4
Changement de perte d'insertion:
Le taux d'oxydation est supérieur à 0,1 dB
Changement de perte de retour:
<5 dB
Insérer et tirer:
2kg
Mettre en évidence:
10Gbps Networks Fiber Optic Patch Cord
,Low Insertion Loss Optical Patch Cord
,High Return Loss Fiber Optic Cable
Propriétés de base
Certification:
RoHS, CE, ISO9001, VDE, CCC
Propriétés commerciales
Quantité de commande min:
10
Prix:
0.45
Description de produit

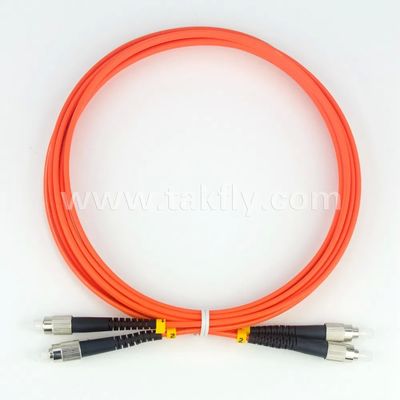

FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord
The FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord is designed for high-performance signal routing between devices. This OM3 50/125 multimode fiber optic cable complies with ISO/IEC 11801 standards, making it ideal for 10Gbps networks to support growing high data rate requirements.
Key Features
- Low insertion loss and high return loss
- Compact, lightweight design for high-density connections
- Excellent exchangeability
- High reliability and stability
- Supports 10 Gigabit data transmission rates
- Available in multiple connector types: FC, LC, SC, MU, ST, MTRJ, E2000, MPO
- Polishing options: PC, UPC, and APC
- Compliant with IEC standards
Applications
- Telecommunication networks
- Fiber optic communication systems
- CATV, LAN, MAN, WAN infrastructure
- Test & Measurement equipment
- Optical access networks
Technical Specifications
| Parameter | Unit | Standard & Requirement |
|---|---|---|
| Insertion loss | dB | ≤0.20 |
| Changeability | dB | ≤ 0.20dB |
| Radius of curvature | nm | 10 ≤ r ≥25 |
| Curvature eccentricity | um | <50 |
| Fiber core undercut | nm | <50 |
| Insertion loss change | dB | < 0.1 |
| Return loss change | dB | < 5 |
| Insert & pull out (Max.) | kg | 2 |
| Insert and pull frequency | Time | > 1000 |
| Operating temperature | ºC | -40~+85 |
