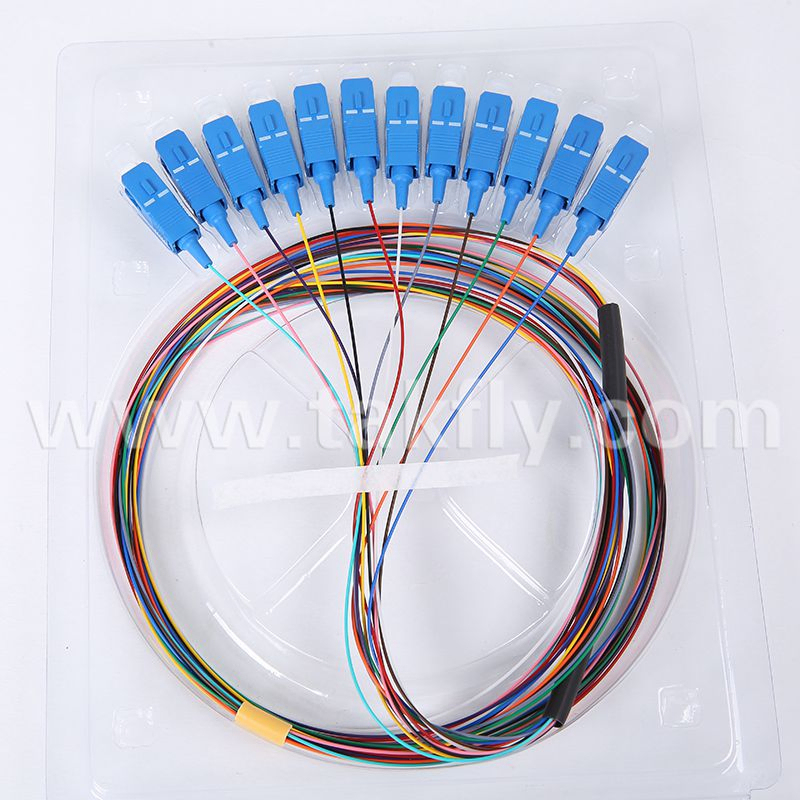

12 Core SC/UPC Single-Mode Fiber Optic Pigtail with 900um Tight Buffer and 2 Years Warranty
Résumé du produit
12 Core SC/UPC Single-Mode Color Fiber Optic Pigtail Fiber Optic Pigtails provide an optimal solution for fusion splicing within fiber optic enclosures. Featuring low insertion loss and low backreflection, these color-coded 900um tight buffer pigtails are designed for high fiber count splicing ...
Product Custom Attributes
Structure de connexion:
SC
Forme du matériau:
Fil rond
Pression latérale:
> 1000 (n / 100 mm)
Résistance à la traction:
> 10000N
Comptage de base:
12 noyau
Matériau de gaine:
PVC
Type de connecteur:
Sc, LC, FC, St etc.
Veste od:
0,9 / 2,0 / 3,0 mm
Type polonais:
UPC / APC
Feruleux:
Céramique en zircone
Perte:
≤0,3 dB
Pertes de rendement:
≥45 dB
Longueur d'onde de fonctionnement:
1310, 1510 nm
Température de fonctionnement:
-40 à 80 °C
Température de stockage:
-45~85 °C
Mettre en évidence:
900um Tight Buffer Fiber Optic Pigtail
,2 Years Warranty Optical Pigtail
,1-5 Days Delivery Fiber Pigtail
Propriétés de base
Lieu d'origine:
Shenzhen, Chine (continent)
Certification:
RoHS, CE, ISO9001
Propriétés commerciales
Quantité de commande min:
1
Prix:
0.21
Description de produit
12 Core SC/UPC Single-Mode Color Fiber Optic Pigtail
Fiber Optic Pigtails provide an optimal solution for fusion splicing within fiber optic enclosures. Featuring low insertion loss and low backreflection, these color-coded 900um tight buffer pigtails are designed for high fiber count splicing applications. The industry-standard color coding simplifies enclosure layout and organization.
Specifications
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.1 | ≤0.1 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | |||
| Operating temperature | °C | -40~80 | |||
| Storage temperature | °C | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||
Fiber Optic Pigtail Color Coding
1. Blue
2. Orange
3. Green
4. Brown
5. Grey
6. White
7. Red
8. Black
9. Yellow
10. Purple
11. Pink
12. Aqua
Key Features and Applications
- Color-coded fiber jacket for easy identification and management
- Low insertion loss and back reflection loss
- Clearly identifiable fiber buffer colors under all lighting conditions
- Reduces installation time and prevents incorrect patching
Applications
- Data centers and premise installations
- Telecommunication networks
- Ethernet, fiber channel, ATM, LAN, MAN and WAN
- Data communication systems
- Indoor applications
Product Images
Applications
Order Information
Certificates
Factory Photo
