Optical Time Domain Reflectometer Launch Cable Box | Powerful performance& Easier operation& Efficient work
Détails sur le produit:
| Lieu d'origine: | Chine, Shenzhen |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | Réflectomètre du domaine temporel optique |
Conditions de paiement et expédition:
| Quantité de commande min: | Négociable |
|---|---|
| Prix: | negotiable denpend on QTY |
| Détails d'emballage: | Boite Blister+Carton |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement est situé à l'extrémité nord de l'île. |
| Capacité d'approvisionnement: | 1000 pièces/jour |
|
Détail Infomation |
|||
| Nom du produit: | Réflectomètre optique dans le domaine temporel | Équipement de test OTDR | Performances puissantes, | Types de fibres: | G652D, G657A, OM1, OM2, OM3, OM4 |
|---|---|---|---|
| Matériel: | SR Polypropylène | Couleur: | Jaune |
| Type de connecteur: | SC / LC / FC / ST | Longueur de fibre (m): | 100 à 2000 (maximum) |
| Température de fonctionnement ((°C): | -40-85°C | Dimension (H x L x P): | 24,8 cm x 14,1 cm x 6,7 cm |
| Poids: | 0,75 kg | Marque de fibre: | Corning, YOFC, OFS, Draka |
| Mettre en évidence: | Optical Time Domain Reflectometer launch cable,Fiber optic tool kit with warranty,OTDR launch cable efficient work |
||
Description de produit

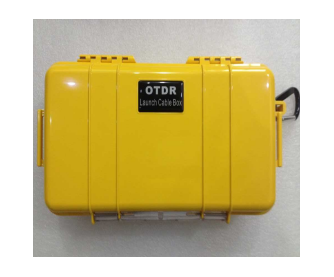

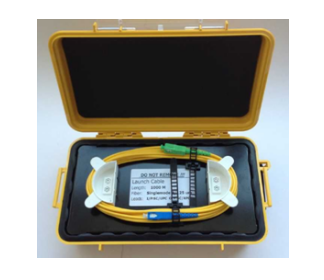

OTDR Launch Cable Box
Designed to aid in testing fiber optic cable when using an Optical Time Domain Reflectometer (OTDR), this launch cable box delivers powerful performance, easier operation, and efficient workflow.
Product Overview
The OTDR Launch Fiber Box is used with Optical Time Domain Reflectometers (OTDRs) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths to suit various testing requirements.
Compliance Standards
- ITU-T G652.D, G656.A
- ITU-T G651.1 OM1, OM2, OM3, OM4
- IEC60793-2-10 type A1a.1/A1b OM1/OM2
- Type A1a.2 OM3, type A1a.3 OM4
- Telcordia (formerly Bellcore) GR-326-CORE
- RoHS Compliant Directive 2011/65/EU
Applications
- Use as OTDR launch/receive cable
- Test link loss with an OTDR
- Measure insertion loss and reflectance of near/far end connector
- Pulse suppressor for the first reflection at the beginning of a fiber
Key Features
- Standard boxes along with custom configurations for OTDR applications
- Compact and rugged packaging
- Portable for field use
- Prevents fiber damage and ensures accurate results
- Compound latch for positive seal and easy opening with locking feature
- Water and dust proof for use in various environments
- Case can house up to 2,000 meters of fiber
- Auto Purge Valve for changes in altitude and temperature
Technical Specifications
| Mechanical & Environmental Characteristics | |
|---|---|
| Dimension | 24.8CM x 14.1CM x 6.7CM |
| Material | SR Polypropylene |
| Color | Yellow |
| Weight | 0.75kg |
| Packaging | Rugged, hard-shell transit case |
| Storage Temperature | -40 to +85°C |
| Fiber & Connector Characteristics | |
| Fiber Types | G652D, G657A, OM1, OM2, OM3, OM4 |
| Fiber Length (m) | 100 up to 2000 (max) |
| Lead Length | 2/3 Meters, 3mm buffer |
| Typical Loss | <0.5dB @ 1310 for 1000 meters |
| Connector Type | SC/LC/FC/ST |
| Polish | PC, UPC, APC |
| Return Loss* | UPC>=50dB, APC>=60dB, PC>=35dB |
| Repeatability (dB) | <=0.2 (1000 times) |
| Exchangeability (dB) | <=0.2 |
Order Information
OTDR-A-B-C-D
A for Input connector | B for Output connector | C for Fiber Mode | D for Length
For Example: OTDR-SC-FCA-SM-1KM; 1KM SM, SC on I/P lead, FC/APC on O/P lead
Why Choose TAKFLY?
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and 16 Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website for catalogue and pricing.
Q2: Can I negotiate the prices?
A2: Yes, we consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
Q6: What is your terms of packing?
A6: Standard packing includes blister box and cartons. Customized packing available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU available.
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
