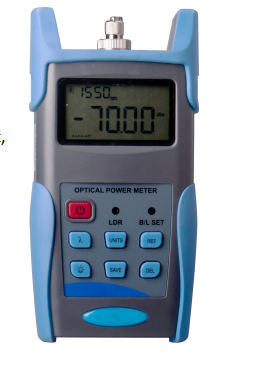

FTTx Fiber Handheld Optical Power Meter in China For Testing & Installation & Maintenance
Détails sur le produit:
| Lieu d'origine: | Chine, Shenzhen |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | Compteur d'électricité optique tenu dans la main |
Conditions de paiement et expédition:
| Quantité de commande min: | Négociable |
|---|---|
| Prix: | negotiable denpend on QTY |
| Détails d'emballage: | Boite Blister+Carton |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement est situé à l'extrémité nord de l'île. |
| Capacité d'approvisionnement: | 1000 pièces/jour |
|
Détail Infomation |
|||
| Nom du produit: | Compteur de puissance optique portable à fibre FTTx en Chine pour les tests, l'installation et l | Longueur d'onde calibrée (nm): | 850, 1300,1310,1490,1550,1625 |
|---|---|---|---|
| Plage de mesure (dBm): | -70～+6 -50～+26 | Identifiant de fréquence ((Hz): | 270,330,1K,2K |
| Port de communication: | USB | Type de connecteur optique: | FC, SC, ST interchangeables |
| Température de fonctionnement ((°C): | -10~+60 | Taille du contour （mm）/poids: | 180*90*45(250g) |
| Marque de fibre: | Corning, YOFC, OFS, Draka | ||
Description de produit
TK-326 Handheld Optical Power Meter is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with 316 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Compared with usual power meters, the 326 has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the 326 features good appearance, good touch feeling and considerate humanity design.
-
Wave ID—Automatic wavelength identification and switching (when used with 316 handheld light source)
-
Frequency ID/Tone detection---Automatic frequency identification
-
Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
-
Data storage function, up to 1000 test records
-
USB communication port for saved testing records download
-
Reference power level can be set up and stored
-
User self calibration function
-
Auto-off function can be activated or deactivated.
-
AA alkaline and AC adapter for power supply
-
Low battery indication
|
Model |
326A |
326B |
|
Calibrated(nm)wavelength |
850, 1300,1310,1490,1550,1625 |
|
|
Detector type |
InGaAs |
|
|
Measurement Range(dBm) |
-70～+6 |
-50～+26 |
|
Uncertainty (dB) |
±0.15(3.5%) |
|
|
linearity (dB) |
±0.02 |
|
|
Display resolution(dB) |
0.01 |
|
|
Frequency ID(Hz) |
270,330,1K,2K |
|
|
Wave ID(nm) |
1310,1490,1550,1625 |
|
|
Date storage capacity |
1000 |
|
|
Communication Port |
USB |
|
|
Optical Connector type |
FC,SC,ST interchangeable |
|
|
Alkaline battery |
3*AA,1.5V |
|
|
Power Supply Adaptor(V) |
8.4 |
|
|
Battery Operating time (h) |
200 |
|
|
Operation Temperature(℃) |
-10～+60 |
|
|
Storage Temperature(℃) |
-25～+70 |
|
|
Outline size(mm)/weight |
180*90*45(250g) |
|
|
MODEL |
INCLUDES |
|
All 326 Models |
326 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case. |
