FTTx Fiber Optic Handheld Adjustable Light Source in Chinese For SM/MM FC/PC
Détails sur le produit:
| Lieu d'origine: | Chine, Shenzhen |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | Source de lumière réglable à main |
Conditions de paiement et expédition:
| Quantité de commande min: | Négociable |
|---|---|
| Prix: | negotiable denpend on QTY |
| Détails d'emballage: | Boite Blister+Carton |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement est situé à l'extrémité nord de l'île. |
| Capacité d'approvisionnement: | 1000 pièces/jour |
|
Détail Infomation |
|||
| Nom du produit: | Source de lumière réglable portative à fibres optiques FTTx en chinois pour SM/MM FC/PC | Longueur d'onde de fonctionnement (nm): | 1310/1550 ; 1310/1490/1550/1625 (d'autres précisent sur les demandes) |
|---|---|---|---|
| Perte de glace en fibre applicable: | SM, MM | Type de laser: | FP-LD (autres à préciser sur demandes) |
| Port de fibre: | FC / PC | Température de fonctionnement ((°C): | -10~+60 |
| Taille du contour （mm）/poids: | 180*90*45(250g) | De puissance de sortie (dBm): | -5 ~ -12 dBm (peut être réglable) |
| Marque de fibre: | Corning, YOFC, OFS, Draka | ||
| Mettre en évidence: | FTTx fiber optic adjustable light source,handheld fiber optic light source SM/MM,FC/PC fiber optic tool with warranty |
||
Description de produit

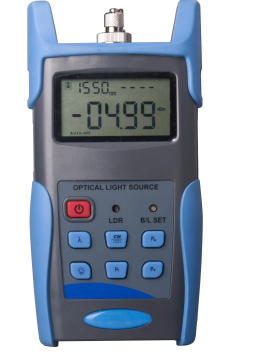

FTTx Fiber Optic Handheld Adjustable Light Source
Professional handheld adjustable light source designed for SM/MM FC/PC fiber optic applications with Chinese interface support.
Product Overview
The TK-316 Handheld Adjustable Light Source is a newly designed fiber optic tester specifically engineered for fiber network installation, engineering acceptance testing, and maintenance operations. When used in combination with the 326 handheld optical power meter, it provides a rapid and precise testing solution for both single-mode and multi-mode fibers.
Key Features
- Wave ID information transmission when paired with 326 Optical Power Meter
- Tone generation at 270Hz, 330Hz, 1KHz, and 2KHz frequencies
- Adjustable output power with LCD display
- Intelligent backlight control with ambient light adjustment
- Dual power supply: AA alkaline batteries and AC adapter
- Low battery indication
- Ergonomic design with superior tactile experience
Technical Specifications
| Model | 316 |
| Operating Wavelength (nm) | 1310/1550; 1310/1490/1550/1625 (customizable) |
| Applicable Fiber | SM, MM |
| Laser Type | FP-LD (customizable) |
| Output Power (dBm) | -5~-12dBm (adjustable) |
| Adjustable Step Size (dBm) | <0.5 |
| Stability (dB, 30min, 20℃) | 0.15 |
| Modulation (Hz) | CW, 270, 330, 1K, 2K |
| Fiber Port | FC/PC |
| Alkaline Battery | 3*AA, 1.5V |
| Power Supply Adaptor (V) | 8.4 |
| Battery Operating Time (h) | 45 |
| Operation Temperature (℃) | -10～+60 |
| Storage Temperature (℃) | -25～+70 |
| Outline Size (mm)/Weight | 180*90*45 (250g) |
Standard Accessories
| All 316 Models | 316 Optical Light Source, 3pcs 1.5V batteries, AC Adaptor, User Manual and Soft carrying case |
Why Choose TAKFLY?
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and 16 Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
