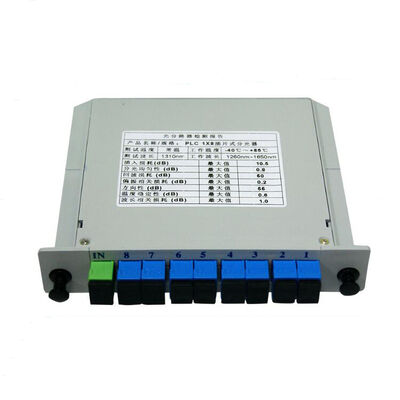

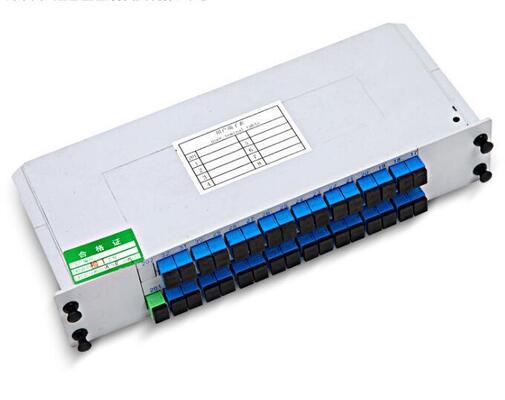

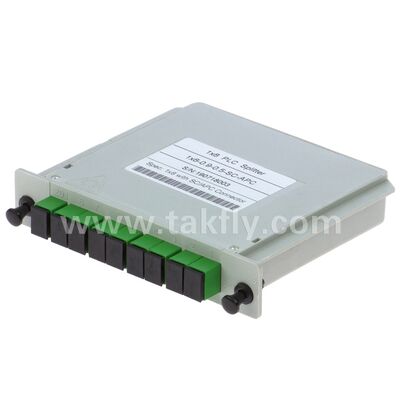

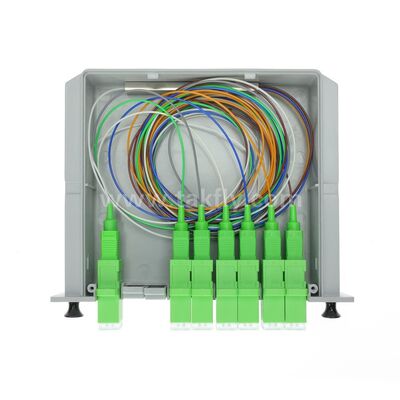

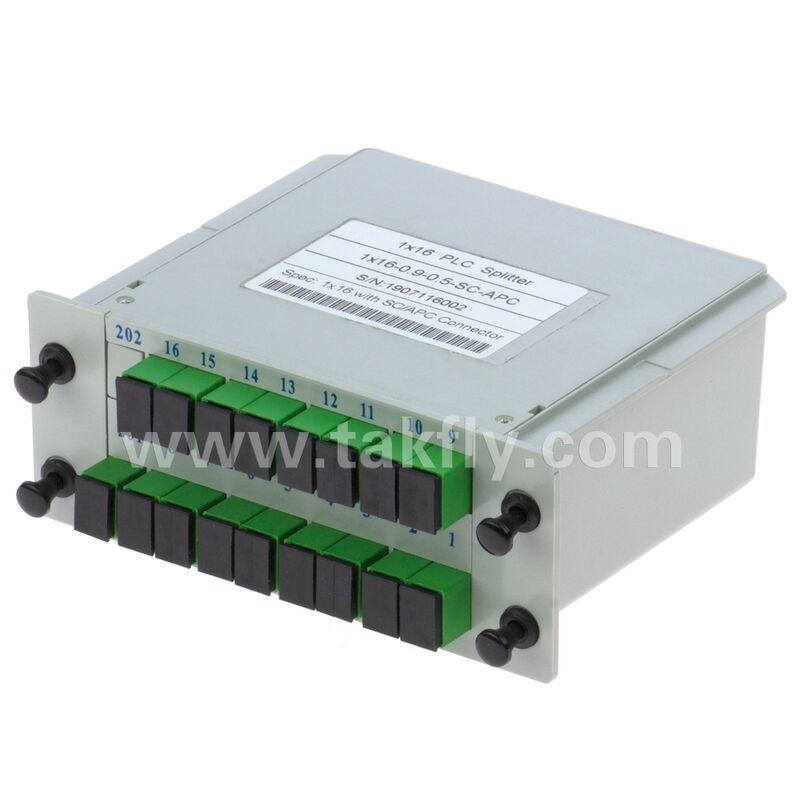

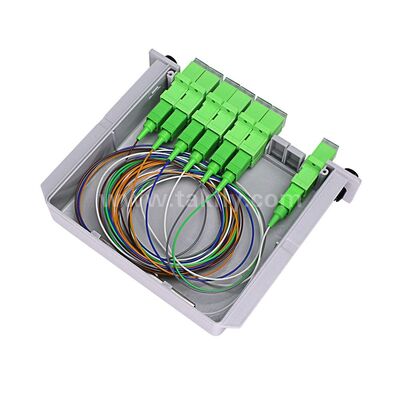

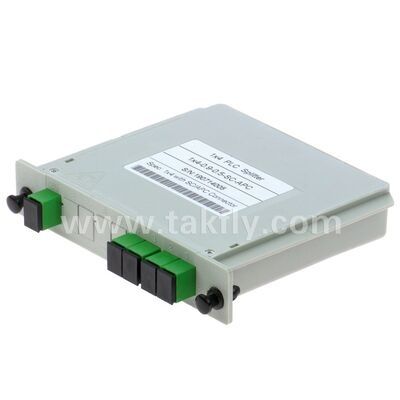

Fiber Optic PLC Splitter LGX Singlemode G657A SC APC/UPC for Data Center Telecom FTTx
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | OEM |
| Certification: | ISO, CE RoHS |
| Numéro de modèle: | DF-PLC-LGX |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 |
|---|---|
| Prix: | USD2-30/pc |
| Détails d'emballage: | CARTON |
| Délai de livraison: | 5-8 jours ouvrables |
| Conditions de paiement: | T/T, Western Union |
| Capacité d'approvisionnement: | 50000 pièces par mois |
|
Détail Infomation |
|||
| Personnalisation: | Oui | ||
|---|---|---|---|
| Mettre en évidence: | Fiber Optic PLC Splitter LGX,Singlemode G657A SC Splitter,FTTx Data Center PLC Splitter |
||
Description de produit
PLC splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is mainly used for optical signal coupling and distribution in passive optical network (PON) systems. It is one of the most important passive components in optical networks.
TAKFLY provides PLC optical splitters in multiple configurations including 1xN, 2xN, and others to meet diverse customer requirements.
LGX PLC optical splitter offers advantages including wavelength insensitivity, high stability, and uniform splitting. It is one of the most important passive devices in optical networks, widely used in:
- MAN (Metropolitan Area Network)
- LAN (Local Area Network)
- FTTx systems
Available with high quality ferrule, professional polishing technology, and precise matching for optical endface to achieve more stable transmission and efficient connection.
TAKFLY's PLC optical splitter module delivers excellent performance parameters. The PLC optical splitter is insensitive to wavelength and supports full-band signal transmission from 1260 to 1650 nm.
| Item | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
|---|---|---|---|---|---|---|---|
| Fiber Type | G657A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Standard Insertion Loss (dB) | ≤4.4 | ≤7.7 | ≤10.8 | ≤14.0 | ≤17.3 | ≤20.8 | ≤24.0 |
| P-Grade Insertion Loss (dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 |
| Uniformity (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| Return Loss (dB) | ≥50 | ||||||
| Directivity (dB) | ≥55 | ||||||
| Operating Temperature | -40℃~+85℃ | ||||||
| Item | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 |
|---|---|---|---|---|---|---|---|
| Fiber Type | G657A | ||||||
| Working Wavelength | 1260nm~1650nm | ||||||
| Standard Insertion Loss (dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 |
| P-Grade Insertion Loss (dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 |
| Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Wavelength Dependent Loss (dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 |
| Return Loss (dB) | ≥50 | ||||||
| Directivity (dB) | ≥55 | ||||||
| Operating Temperature | -40℃~+85℃ | ||||||
