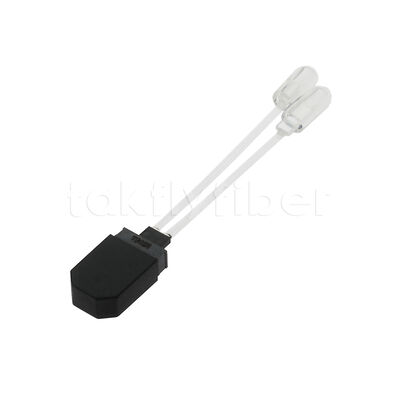

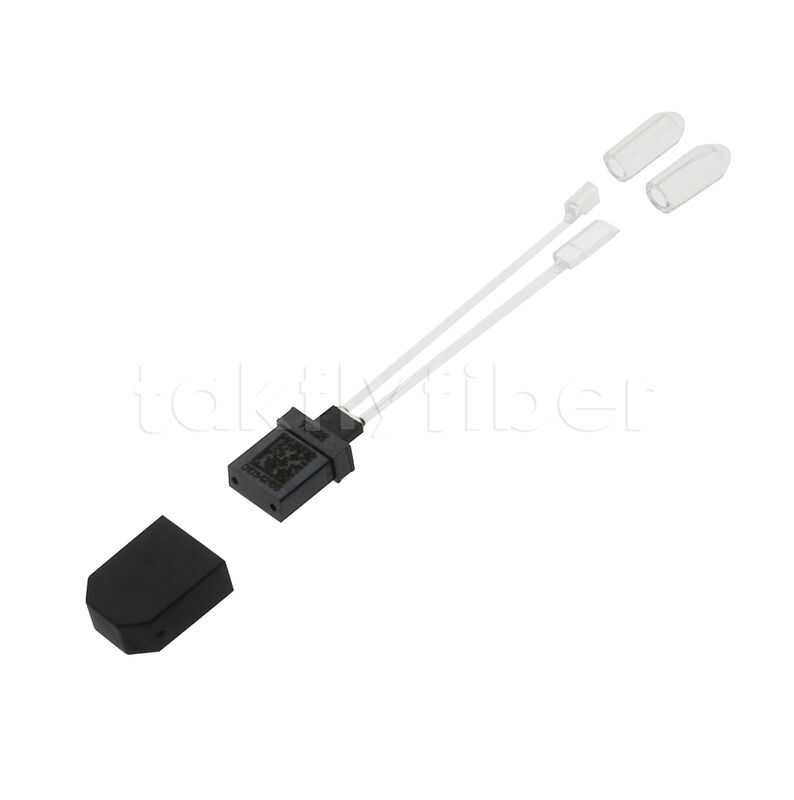

High-Speed Cost-Effective Customizable MT to FA Fiber Array Assembly for Data Center Applications
Détails sur le produit:
| Lieu d'origine: | 5X |
| Nom de marque: | OEM/Takfly |
| Certification: | CE, ROSH REACH |
| Numéro de modèle: | DF-MT-2FA |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pièces |
|---|---|
| Prix: | Can be negotiated |
| Détails d'emballage: | Sacs PP + boîte en carton/boîte en plastique + boîte en carton |
| Délai de livraison: | 3-15 jours ouvrables selon la quantité et les exigences |
| Conditions de paiement: | LC, T/T, Western Union, MoneyGram, Paypal |
| Capacité d'approvisionnement: | 20000 pièces par mois |
|
Détail Infomation |
|||
| Nom du produit: | Assemblage de réseau de fibres MT à 2FA rentable et à grande vitesse | Type de fibre: | OM3, OM4 ; OM1, OM2 ; OS1, OS2 ; PM ; OM5 |
|---|---|---|---|
| Nombre de fibres: | 2F/4F/8F/12F/16F/24F | Angle FA: | 0 / 42,5° |
| Sexe MT: | Mâle /Female | Longueur des fibres: | 20 ~ 100 mm, longueur personnalisée disponible |
| Mettre en évidence: | High-Speed MT to FA Fiber Array Assembly,Cost-Effective Fiber Array Unit,Customizable FAU |
||
Description de produit
High-Speed Cost-Effective MT to 2FA Fiber Array Assembly
Takfly designs and produces a comprehensive selection of fiber array units (FAUs) engineered for long-haul and metro networks, as well as data center applications. Leveraging our expertise in specialty fibers and customizable V-groove chips and covers, our FAU products can be tailored to meet your specific requirements, including inter-fiber core pitch and precision, number of channels, fiber type, and termination type.
Each fiber array unit delivers ultra-accurate fiber core positioning, ensuring low insertion loss and high optical return loss, achieved through our advanced dicing machines and core pitch measurement systems. Takfly Group also provides FA-integrated connectors and interposers to support the evolving needs of photonic integrated circuit (PIC) development.
Key Features
- GR-1435, GR-1221 compliant
- Transmission mode: multi-channel, both serial and parallel
- High accuracy performance
- Support for various configurations: 12 x 1.25~3.5G, 2X40G(4x10G), 2X100G(4x25G), 10X10G, 12x10G, 4x32G, 8X10G, 8X25G, 8X50G, 8X100G
- Coupling Mode: Active coupling with light source (0~45 degrees) and Passive coupling with guide pins (90 degrees)
- IL/RL Specifications: MT IL ≤0.60 dB typical 0.20 dB, MT RL ≥20 dB
- Operating temperature range: -40℃ to +85℃
Technical Specifications
| Connector A | MT Ferrule with guide pin |
| Connector B | FA, customized size/angle available |
| Fiber shape | Ribbon/single fibers |
| Fiber count | 2F/4F/8F/12F/16F/24F |
| Fiber type | OM3, OM4; OM1, OM2; OS1, OS2; PM; OM5 |
| Length | 20~100mm, customized length available |
| Length tolerance | +500um/-0um |
Frequently Asked Questions
Could you customize the MT to FA for customers?
Yes, we can. OEM is available. Welcome to send us your drawing requirements.
What's your production capacity for MT-FA?
Our production capacity is 20K ~40K pieces per month, depending on different channel configurations.
Can I visit your facility?
Sure, our factories are located in Shenzhen and Zhongshan, Guangdong, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
We accept T/T, Paypal, Western Union, Alipay, and other payment methods.
What are your delivery terms?
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
