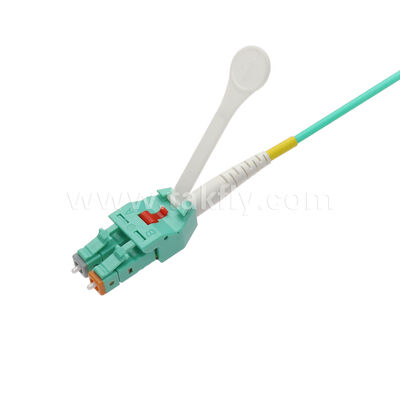

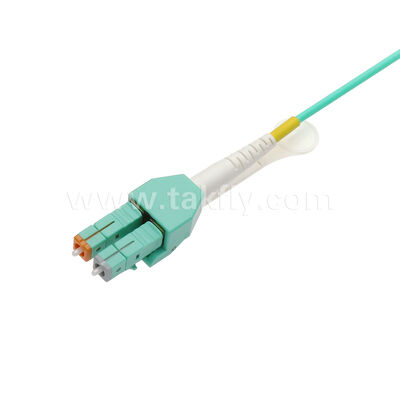

LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord OM3 Multimode LSZH 2.0mm
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | TK-UPC-2.0-1M-LCP-LCP-SM-OM3-XXX |
Conditions de paiement et expédition:
| Quantité de commande min: | 100 pièces |
|---|---|
| Prix: | US$0.01~3.99/PC |
| Détails d'emballage: | Emballage standard d'exportation |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement est situé à l'extrémité nord de l'île. |
| Capacité d'approvisionnement: | 10000 pièces/jour |
|
Détail Infomation |
|||
| Nom du produit: | LC UPC à LC UPC Uniboot Duplex BIF câble de raccordement à fibres optiques cordon de raccordement OM | Perte d'interaction: | ≤0,2dB |
|---|---|---|---|
| Perte de retour: | PCMM ≥ 30dB | Type de fibre: | OM3 |
| Diamètre: | 2,0 mm | Type de connecteur: | PC |
| Matériau de la veste: | LSZH/PVC/OFNR/OFNP | Couleur: | Aqua, ou personnalisé |
| Longueur d'onde: | 850/1310nm | Longueur: | 1m ou personnalisé |
| Température de fonctionnement: | -20 ℃ ~ 70 ℃ | Diamètre des fibres: | 9/125 |
| Grade: | Grade de télécommunications | Certificat: | Ce document est conforme à la présente directive. |
| Capacité de production: | 10000 pièces/jour | ||
Description de produit
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord OM3 Multimode LSZH 2.0mm
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord Description:
Takfly uniboot design meet the high-density space requirements. Uniboot assemblies provide a single boot design integrated into the connector and clip design. The uniboot design allows one cable to carry two fibers, reducing cable congestion during routing, and combines modularity, flexibility, and ease of insertion and removal from connectivity. The bend insensitive fibre features ultrabendable performance, which can greatly reduce outages and degradations in systems caused by severe bending problems.
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord Patchcord Specifications:
|
Connector Type |
Standard Clip LC to LC |
Polish Type |
UPC to UPC |
|
Fiber Count |
2 Fibers |
Fiber Grade |
Bend Insensitive Fiber |
|
Fiber Mode |
OM3 50/125μm |
Wavelength |
850/1300nm |
|
Flame Rating |
Riser (OFNR) |
Cable Outside Diametre (OD) |
2.0mm |
|
Polarity |
A (Tx) to B (Rx) |
Tensile Strength |
60/100N (Long/Short Term) |
|
Min. Bend Radius (Optical Fiber) |
7.5mm |
Min. Bend Radius (Fiber Cable) |
20/10D (Dynamic/Static) |
|
Insertion Loss |
≤0.2dB |
Return Loss |
≥30dB |
|
Attenuation at 850nm |
≤3.5dB/km |
Attenuation at 1300nm |
≤1.5dB/km |
|
Operating Temperature |
-10 to 70°C (14 to 158℉) |
Storage Temperature |
-20 to 70℃ (-4 to 158℉) |
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
LC UPC to LC UPC Uniboot Duplex BIF Fiber Optic Patch Cable Patchcord Features:
• Uniboot with a Single Housing
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• An ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment
Fiber Optic Patchcord Picture
- How to order Optical fiber patch cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
With more than 10 years of sales experience and shipping experience in optical fiber products, I have helped more than 127 customers to expand their business and increase sales, and believe we can provide you with professional guidance, help you save time and money, increase your sales.
