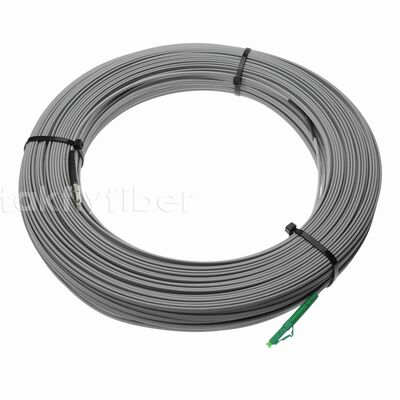

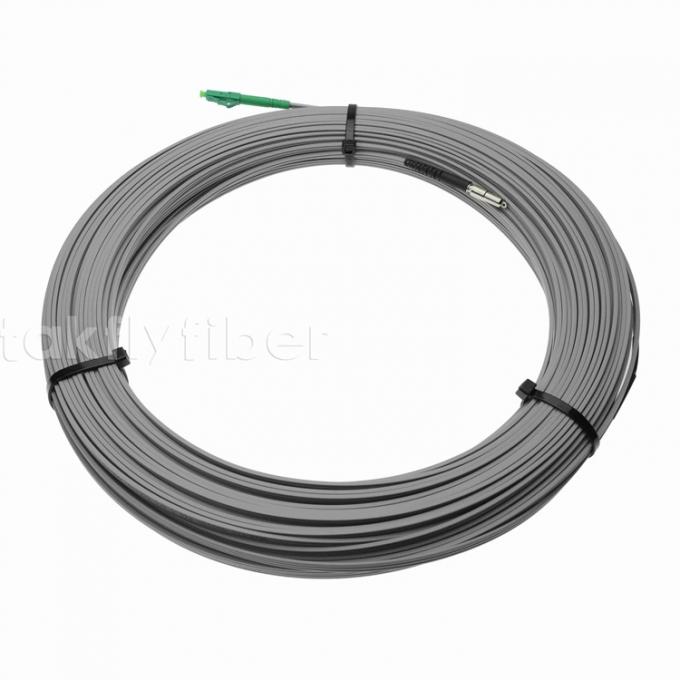

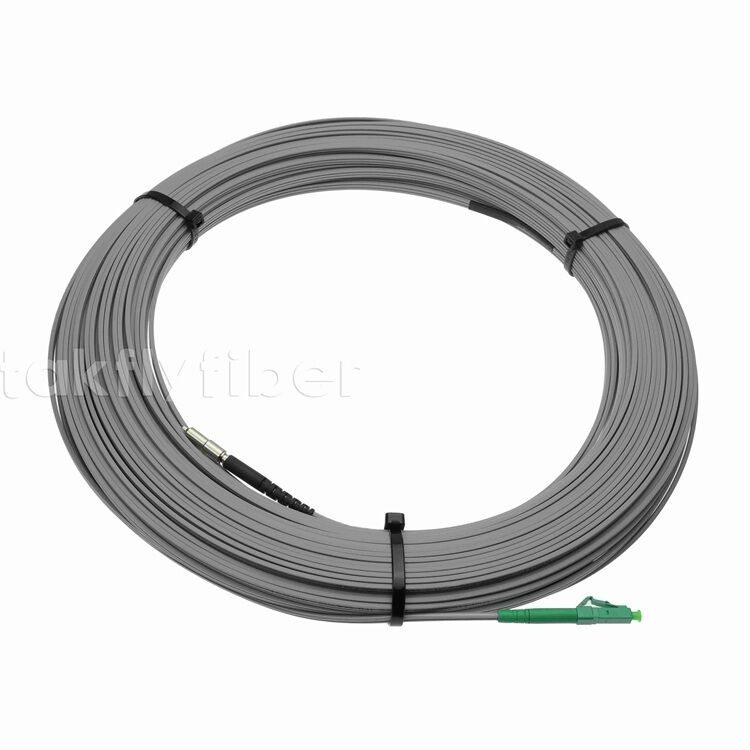

2.0*5.2mm Pullable Bullet SCAPC to SC/APC FTTH Drop Cable Fiber Optic Patchcord SM G657A2
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | TK-PC-SAP-SA-AS-3.0-TPU |
Conditions de paiement et expédition:
| Quantité de commande min: | 100 pièces |
|---|---|
| Prix: | US$0.01~4.69/PC |
| Détails d'emballage: | Emballage standard d'exportation |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement est situé à l'extrémité nord de l'île. |
| Capacité d'approvisionnement: | 5000pcs / jour |
|
Détail Infomation |
|||
| Nom du produit: | Balle extractible SCAPC 2.0x5.2mm vers câble d'interface SCAPC FTTH, cordon de raccordement à Fi | Perte d'interaction: | ≤0,3dB |
|---|---|---|---|
| Perte de retour: | Le débit d'air doit être supérieur ou égal à 60 dB | Type de fibre: | Les données de l'échantillon doivent être fournies à l'autorité compétente de l'État membre où l'éch |
| Diamètre: | 2.0*5,2 mm | Type de connecteur: | APC |
| Matériau de la veste: | LSZH | Couleur: | Noir |
| Longueur d'onde: | 1310 nm, 1550 nm | Longueur: | 5m ou personnalisé |
| Température de fonctionnement: | -20 ℃ ~ 70 ℃ | Diamètre des fibres: | 9/125 |
| Grade: | Grade de télécommunications | Certificat: | Ce document est conforme à la présente directive. |
| Capacité de production: | 10000 pièces/jour | ||
| Mettre en évidence: | SC/APC fiber optic patchcord,pullable bullet FTTH drop cable,G657A2 single mode patchcord |
||
Description de produit
Takfly Bullet Pushable cable assemblies offer a flexible, pushable pre-terminated fiber optic drop solution for fast and reliable FTTX deployments. The bullet pushable connector enables the pre-connectorized cable to be installed through microducts and small holes that are typical of most FTTX scenarios. This cable can be installed without using large conduits or drilling big holes through the customer's wall.
This bullet Pushable assembly can be successfully pushed through small holes and microduct. Hand push distances vary according to bend frequency and duct quality. The rugged round drop cable with the pushable pre-terminated connector reduces the cost of fiber deployments as well as the intrinsic skill and difficulty of handling and connecting customer drop cables.
- Mode field diameter: 8.6μm ± 0.4μm at 1310nm
- Cladding diameter: 125.0μm ± 0.7μm
- Coating diameter: 245μm ± 10μm
- Coating-cladding concentricity error: ≤ 12.5μm
- Cut-off wavelength: ≤ 1260nm
- Attenuation coefficient: 1310 ≤ 0.4dB, 1550 ≤ 0.3dB
- Number of fiber: 1 core
- Fiber type: G657A1
- Strength member material: FRP
- Diameter: 0.5mm × 2
- Self-support messenger wire: Steel wire, 1.0mm diameter
- Outer sheath: LSZH Black
- Cable size: 5.0 × 2.0mm
| Item | Specifications |
|---|---|
| Type | SC/APC (1310) |
| Insertion Loss | ≤ 0.3 dB + 0.36 dB/km × L(km) @ 1310nm ≤ 0.3 dB + 0.25 dB/km × L(km) @ 1550nm |
| Return Loss | ≥ 60dB |
| Endface | IEC 61300-3-35 |
| Durability (1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃ ~ +60℃ |
| Operating Temperature | -25℃ ~ 70℃ |
| Storage Temperature | -40℃ ~ 75℃ |
| Cable pull | 90N |
| Parameter | Long Term | Short Term |
|---|---|---|
| Tensile strength (N) | 200 | 500 |
| Crush load (N) | 1000 | 2000 |
| Wavelength (nm) | 1310/1550 | |
| Attenuation (dB) | 0.4/0.3 | |
| Cladding diameter (μm) | 125 ± 1 | |
| Cladding non-circularity | ≤ 1.0% | |
| Coating diameter (μm) | 242 ± 7 | |
| NO. | Item | Unit | Specification (SM G657A2) |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm) | μm | 8.2~9.0 |
| 1 | Mode Field Diameter (1550nm) | μm | 9.1~10.1 |
| 2 | Cladding Diameter | μm | 125 ± 0.7 |
| 3 | Cladding Non-Circularity | % | ≤ 0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤ 0.5 |
| 5 | Coating Diameter | μm | 245 ± 5 |
| 6 | Coating Non-Circularity | % | ≤ 6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤ 12 |
| 8 | Cable Cutoff Wavelength | nm | λcc ≤ 1260 |
| 9 | Attenuation (Max) 1310nm | dB/KM | ≤ 0.36 |
| 9 | Attenuation (Max) 1550nm | dB/KM | ≤ 0.25 |
| 10 | Macro-Bending Loss (1 Turn × 7.5mm radius @1550nm) | dB | ≤ 0.08 |
| 10 | Macro-Bending Loss (1 Turn × 7.5mm radius @1265nm) | dB | ≤ 0.25 |
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We believe we can provide you with professional guidance, help you save time and money, and increase your sales.
