EC Fiber Optic Pigtail LSZH/PVC SM/MM
Détails sur le produit:
| Lieu d'origine: | Chine, Shenzhen |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | TK-PC-48F-SC-OS2-50M |
Conditions de paiement et expédition:
| Quantité de commande min: | Négociable |
|---|---|
| Prix: | negotiable denpend on QTY |
| Détails d'emballage: | Boite Blister+Carton |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement doit fournir les informations suivantes: |
| Capacité d'approvisionnement: | 1000 pièces/jour |
|
Détail Infomation |
|||
| Nom du produit: | Queue de cochon CE | Perte d'interaction: | ≤0,3dB |
|---|---|---|---|
| Perte de retour: | UPC SM≥50 dB, APC SM≥ 60 dB, PC MM ≥ 35 dB | Type de fibre: | Corning SM G652D |
| Diamètre de l'appareil: | 1.6 mm/2.0 mm | Type de connecteur: | SC / UPC |
| Matériau de la veste: | LSZH/PVC | Couleur: | Jaune ou personnalisé |
| Longueur d'onde: | 1310 nm, 1550 nm | Longueur: | 10M, 20M ou sur mesure |
| Température de fonctionnement: | -20 ℃ ~ 70 ℃ | Diamètre des fibres: | 9/125 |
| Marque de fibre: | Corning, YOFC, OFS, Draka | ||
| Mettre en évidence: | LSZH fiber optic pigtail,PVC fiber optic pigtail,single mode fiber pigtail |
||
Description de produit

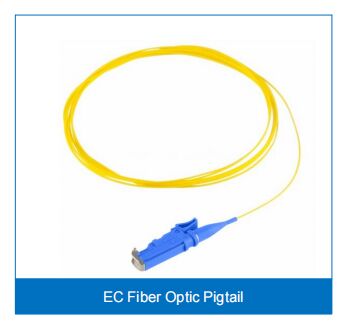

EC Fiber Optic Pigtail LSZH/PVC SM/MM
Product Overview
EC Fiber Optic Pigtail Single Mode 2.5M LSZH Jacket
Fiber optic pigtail is the cable with only one end terminated with fiber optic EC connector, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Key Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Technical Specifications
| Parameter | Specification |
|---|---|
| End face type | UPC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 0.9 mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N；2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
Product Images
Why Choose TAKFLY
Professional Manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
