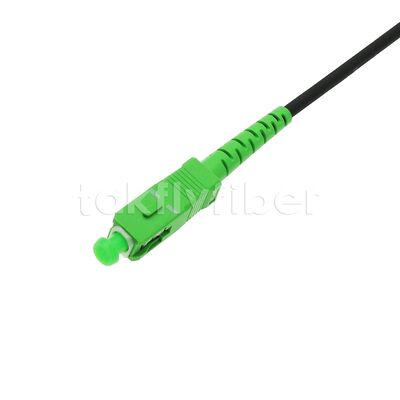

CPR Eca Certified 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | TK-PC-3.0-TPU-SA-SA-20M |
Conditions de paiement et expédition:
| Quantité de commande min: | 100 pièces |
|---|---|
| Prix: | US$0.01~4.99/PC |
| Détails d'emballage: | Emballage standard d'exportation |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement doit fournir les informations suivantes: |
| Capacité d'approvisionnement: | 10000pcs / jour |
|
Détail Infomation |
|||
| Nom du produit: | CPR Eca a certifié la corde de correction optique de fibre de câble d'interface rond de 3.0mm TP | Perte d'interaction: | ≤0,3dB |
|---|---|---|---|
| Perte de retour: | Le débit d'air doit être supérieur ou égal à 60 dB | Type de fibre: | Les données de l'échantillon doivent être fournies à l'autorité compétente de l'État membre où l'éch |
| Diamètre: | 3,0 mm | Type de connecteur: | APC |
| Matériau de la veste: | TPU | Couleur: | noir |
| Longueur d'onde: | 1310 nm, 1550 nm | Longueur: | 20m ou personnalisé |
| Température de fonctionnement: | -20 ℃ ~ 70 ℃ | Diamètre des fibres: | 9/125 |
| Grade: | Grade de télécommunications | Certificat: | Ce document est conforme à la présente directive. |
| Capacité de production: | 10000pcs / jour | ||
| Mettre en évidence: | 3.0mm TPU fiber optic patch cord,SCAPC-SCAPC fiber optic cable,CPR Eca certified drop cable |
||
Description de produit
CPR Eca Certified 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC
CPR Eca Certified 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC
Takfly's 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC is designed for both indoor and outdoor applications. It is typically manufactured with SM G657A2 or SM G657B3 fiber, offering superior bending performance.
Takfly's 3.0mm TPU Round Drop Cable Fiber Optic Patch Cord SCAPC-SCAPC is designed for both indoor and outdoor applications. It is typically manufactured with SM G657A2 or SM G657B3 fiber, offering superior bending performance.
How to Order Optical Fiber Patch Cord
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: customized to your requirements
- MPO/MTP connector specifications: method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32 fiber)
3.0mm TPU Fiber Optic Patch Cord Specifications
| End face type | SC/APC-SC/APC |
|---|---|
| Fiber type | SM G657A2 colored with red color |
| Cable Diameter | 3.0±0.2mm |
| Insertion loss | ≤0.25dB for ≥97% of the connections |
| Return loss | APC≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | Black |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 3M, 7M, 50M, 100M, or customized |
Fiber Optic Patchcord Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Patchcord Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE

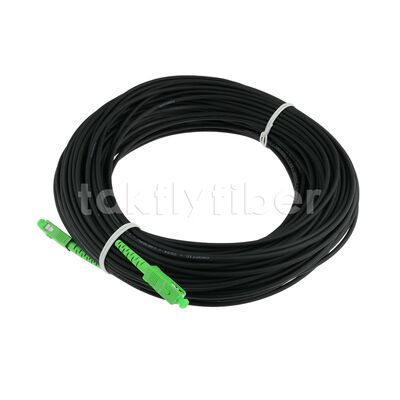

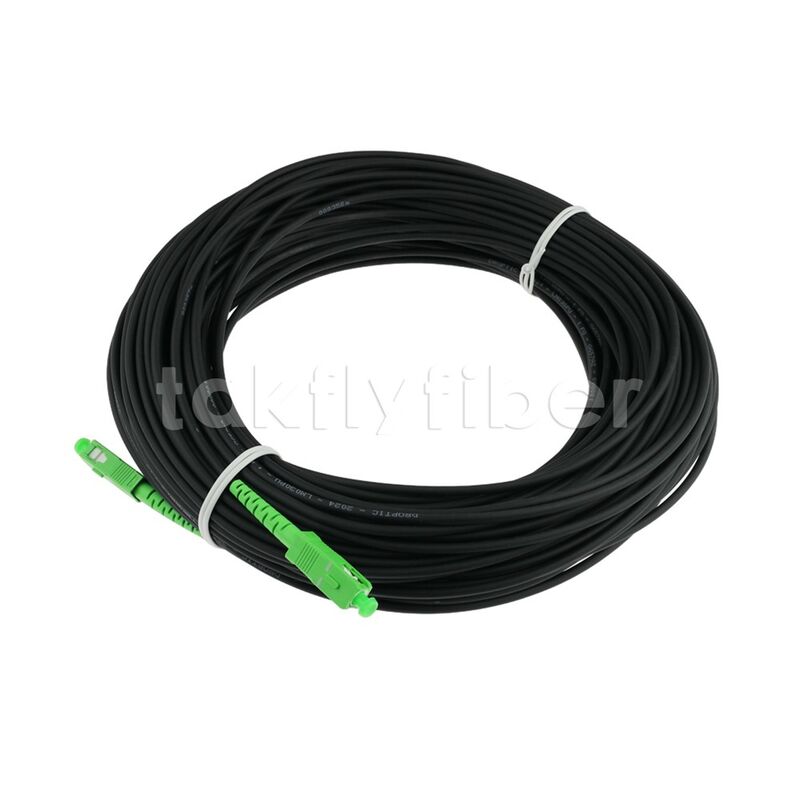

Fiber Optic Patchcord Images
Why Choose TAKFLY - Our Advantages
Professional Manufacturer
- Over 25 years of manufacturing experience in fiber optic products - one-stop purchasing
- More than 450 assembly workers with 3+ years of experience
- 26+ R&D Engineers
- 16 sets of Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM branding available
- Worldwide exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, ICT, ISE, Fiberdays, AOTEC, etc.
- 24/7 after-sales service available
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Full inspection of production half-done
- Full inspection of finished products before packing
- Spot check before shipping
Delivery & Shipping
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
- Shipping: DHL, UPS, FEDEX, TNT, EMS (3-5 working days)
- Sea or air freight using your preferred forwarder or our partnered one
Payment Terms
T/T, PayPal, Western Union, and L/C accepted. Competitive pricing available for large quantity orders.
