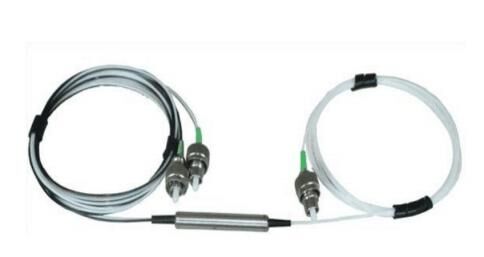

Description de produit
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Applications
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Acess Network
Performance Specifications
|
Parameter |
Specification |
|
|
Channel Wavelength (nm) |
1270-1610 |
|
|
Center wavelength Accuracy (nm) |
±7.5 |
|
|
Channel Spacing (nm) |
20 |
|
|
Pass Channel Insertion Loss (dB) |
≤0.45 |
|
|
Channel Ripple (dB) |
<0.3 |
|
|
Isolation (dB) |
Pass Channel |
>30 |
|
Reflect Channel |
>15 |
|
|
Insertion Loss Temperature Sensitivity (dB/℃) |
<0.005 |
|
|
Polarization Dependent Loss (dB) |
<0.1 |
|
|
Polarization Mode Dispersion |
<0.1 |
|
|
Directivity (dB) |
>50 |
|
|
Return Loss (dB) |
>45 |
|
|
Maximum Power Handling (mW) |
500 |
|
|
Operating Temperature (℃) |
-20~+85 |
|
|
Storage Temperature (℃) |
-40~+85 |
|
|
Package dimension (mm) |
1. Φ5.5 x L38(for 900um Loose tube) 2. Φ5.5 x L34(for bare fiber ) |
|
Above specification are for device without connector.
