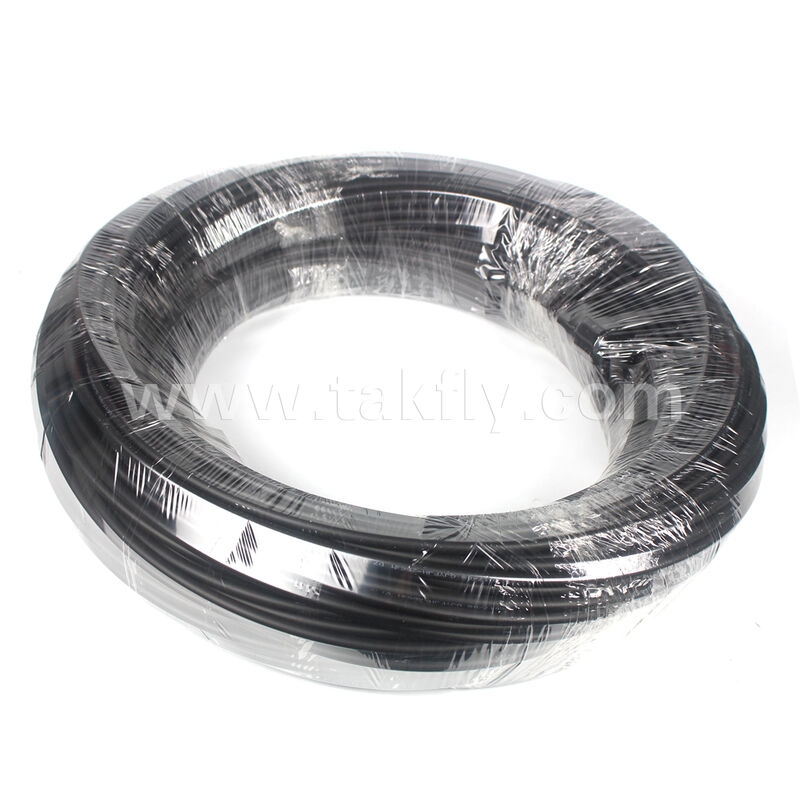

| Mettre en évidence: | Nylon tight-buffered fiber optic cable,MPO MTP optical fiber cable,Durable nylon fiber optic cable |
||
|---|---|---|---|
Description de produit
- Cross Section
| Sketch map | Parts | Spec | Remark |
 |
Fiber |
0. 25mm |
|
|
PATBF |
Φ0.39"-'0.40mm Φ0.88""0.90mm |
Natural |
2. Mechanical and Environmental Characteristics
| Item | Test standard | Spec | Acceptance Criteria |
|
Temperature Range Transportation &Storage |
------------ | 一20 to +60℃ | ------------ |
| Temperature Range Installation | ------------ | 一20 to +60℃ | ------------ |
| Temperature Cycling | IEC 60794-1-2-F1 | 一40 to +80℃ |
Increase Att<=0. 4dB/km |
| Dynamic Bending radii cable | IEC 60794-1-2-E11A | 15mm | no damage |
| Dynamic Load (short term) | IEC 60794-1-2-E1A | 6N |
Increase Att.reversible fible strain<0. 4% |
| Cable Weight kg/km | ------------ | 0.3/0.7 | ------------ |
3. Optical Characteristics
| Type of Fible |
G.657A2 |
|
Mode field diameter @1310nm |
8. 6um |
| Attenuation in cable |
0.22dB/km at 1550 nm 0.35dB/km at 1310 nm |
4. Else
| Sheath Marking | According to the user's standards (as provided by the user) |
