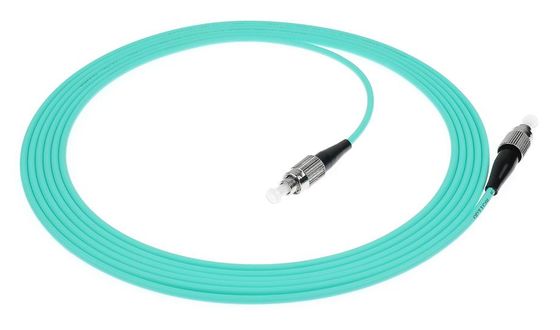

FC-FC Simplex Fiber Optic Patch Cord UPC/APC LSZH/PVC Jacket
Détails sur le produit:
| Lieu d'origine: | Chine, Shenzhen |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | TK-PC-48F-SC-OS2-50M |
Conditions de paiement et expédition:
| Quantité de commande min: | Négociable |
|---|---|
| Prix: | negotiable denpend on QTY |
| Détails d'emballage: | Boite Blister+Carton |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement doit fournir les informations suivantes: |
| Capacité d'approvisionnement: | 1000pcs / jour |
|
Détail Infomation |
|||
| Nom du produit: | Cordon de brassage à fibre optique simplex FC-FC | Perte d'interaction: | ≤0,3dB |
|---|---|---|---|
| Pertes de rendement: | UPC SM≥50 dB, APC SM≥ 60 dB, PC MM ≥ 35 dB | Type de fibre: | Le nombre d'émissions de CO2 est calculé en fonction de l'indice de CO2 de l'établissement. |
| Diamètre du câble: | 2.0、3.0 ou sur mesure (simplex/duplex) | Type de connecteur: | SC / UPC |
| Matériau de veste: | LSZH / PVC | Couleur: | Jaune ou personnalisé |
| Longueur d'onde: | 1310nm, 1550nm | Longueur: | 10M, 20M ou sur mesure |
| Température de fonctionnement: | -20 ℃ ~ 70 ℃ | Diamètre des fibres: | 9/125 |
| Marque de fibre: | Corning, YOFC, OFS et Draka | ||
| Mettre en évidence: | FC-FC simplex fiber optic patch cord,UPC APC fiber optic patchcord,LSZH PVC jacket fiber patch cord |
||
Description de produit
FC-FC Simplex Fiber Optic Patch Cord UPC/APC LSZH/PVC Jacket
Fiber optic patch cord is the cable with both ends terminated with fiber optic connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
Fiber Optic Patchcord Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Patchcord Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Patchcord Specifications
| End face type | UPC and APC |
|---|---|
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
Patchcord Picture
Why choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
