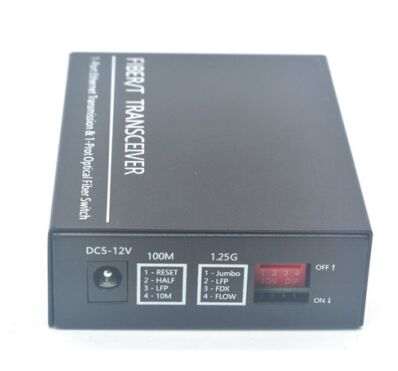

10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter with LFP
Détails sur le produit:
| Lieu d'origine: | Chine, Shenzhen |
| Nom de marque: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numéro de modèle: | TK-PC-48F-SC-OS2-50M |
Conditions de paiement et expédition:
| Quantité de commande min: | Négociable |
|---|---|
| Prix: | negotiable denpend on QTY |
| Détails d'emballage: | Boite Blister+Carton |
| Délai de livraison: | 5 à 9 jours ouvrables selon le QTY |
| Conditions de paiement: | L'établissement doit fournir les informations suivantes: |
| Capacité d'approvisionnement: | 2000 personnes/semaine |
|
Détail Infomation |
|||
| Nom du produit: | Convertisseur de média fibre optique 10/100/1000Base-TX vers 1000Base-FX avec LFP | Standard: | Ethernet IEEE802.3 10Base-T, Ethernet rapide IEEE802.3u 100Base-TX/FX |
|---|---|---|---|
| Débit de données: | Cuivre : 10/100/1000M ; Fibre : 10/100/1000Mbps | Contrôle du débit: | Duplex complet: contrôle du débit; Demi-duplex: pression arrière |
| Duplex complet: contrôle du débit; Demi-duplex: pression arrière: | Nombre de ports en cuivre : 1 Connecteur : Distance du connecteur RJ45 : 100 m | Marque de fibre: | Corning, YOFC, OFS et Draka |
| Port de fibre: | Nombre de ports fibre : 1 Connecteur : SFP par défaut, FC/ST /SC en option Longueur d'onde : TX | Alimentation: | Puissance de fonctionnement : DC5V 1A Alimentation CA : 100 V~ AC240V à 5V1A ou Alimentation CC : -3 |
| Consommation d'énergie: | <2W | Environnement: | Température de fonctionnement : -10~55ºC Température de stockage : -40~85ºC Humidité relative : 5% à |
| Dimensions: | Externe : 94 mm x 70 mm x 26 mm | poids brut: | Externe : 0,4kg |
| Mettre en évidence: | Gigabit Ethernet fiber optic converter,10/100/1000Base-TX media converter,Fiber optic media converter with LFP |
||
Description de produit
10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter with LFP
The DF-MC12 Serial Fiber Media Converter translates signals from twist-pair 10/100/1000MBase-TX cable to 1000Base-FX fiber optic cable, extending data transmission distance from 100m via copper cables to 120km by fiber optic cable. This converter supports LFP (Link Fault Pass-through) function for enhanced network reliability.
Product Features
- 1000Mbps cut-through transmission
- 10/100/1000Mbps store-and-forward
- Packet size up to 1518 bytes
- Support for VLAN / VoIP / QoS packets
- Flow control and broadcast packet reduction
- Support for STP to form redundant networks
- Extremely low power consumption with low heat and stable performance
- Multiple installation options: Desktop, Wall-mounted, Chassis, DIN-rail
- LFP (Link Fault Pass-through) Function
- External Power Adapter or USB power source
- DIP Switch for configuration settings
- Support for extra-long packets up to 1600 bytes
Product Specifications
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet |
|---|---|
| Data Rate | Copper: 10/100/1000M; Fiber: 10/100/1000Mbps |
| Flow control | Full duplex: flow control; Half duplex: back pressure |
| Copper Port | No. of Copper Ports: 1 Connector: RJ45 Distance: 100m |
| Fiber Port | No. of Fiber Ports: 1 Connector: SFP as default, FC/ST/SC optional Wavelength: TX 1550 nm/RX 1310 nm Distance: MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| LED indicators | PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/action), 100 (100M transmission rate of twisted pairs), FX (100M transmission rate of optical fiber) |
| Power supply | Working power: DC5V 1A AC Power Supply: 100V~ AC240V to 5V1A or DC Power Supply: -36~-72V to 5V1A External / Internal Power Supply Optional |
| Power consumption | <2W |
| Environment | Operating temperature: -10~55ºC Storage Temperature: -40~85ºC Relative Humidity: 5% to 95% non-condensing |
| Dimensions | External: 94mm x 70mm x 26mm |
| Gross Weight | External: 0.4kg |
Product Images
Why Choose TAKFLY
- Over 25 years of manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years of experience
- Over 10 R&D Engineers
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Brand acceptance
- Participation in major exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Full inspection of production half done
- Full inspection of finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If you encounter quality issues upon unboxing, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% as deposit, and 70% before delivery. We will provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, delivery takes 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
